New York
Jacob K. Javits Convention Center
Installing a vegetated roof
-
Category
Overburden Solutions -
Completed
2014 -
Type
Commercial Building -
Size
5,025 squares
Challenge
The busy Jacob K. Javits Convention Center in New York City was in need of a multi-faceted reroofing solution. The project's goals included addressing existing leaks and helping realize the client's vision of becoming a role model for environmental leadership to the exhibition industry globally.
Solution
- Removed existing overburden and waterproofing materials
- Installed Siplast Paradiene 20 EG TG over a gypsum-based sheathing panel as temporary waterproofing that allowed an extensive HVAC retrofit and quickly dried-in the structure
- Provided slope-to-drain and thermal value with the Siplast NVS Lightweight Insulating Concrete System
- Completed waterproofing with a mechanically-attached Siplast Parabase FS base sheet, torch-applied Paradiene 20 HV TG, and a finish ply of Siplast Teranap

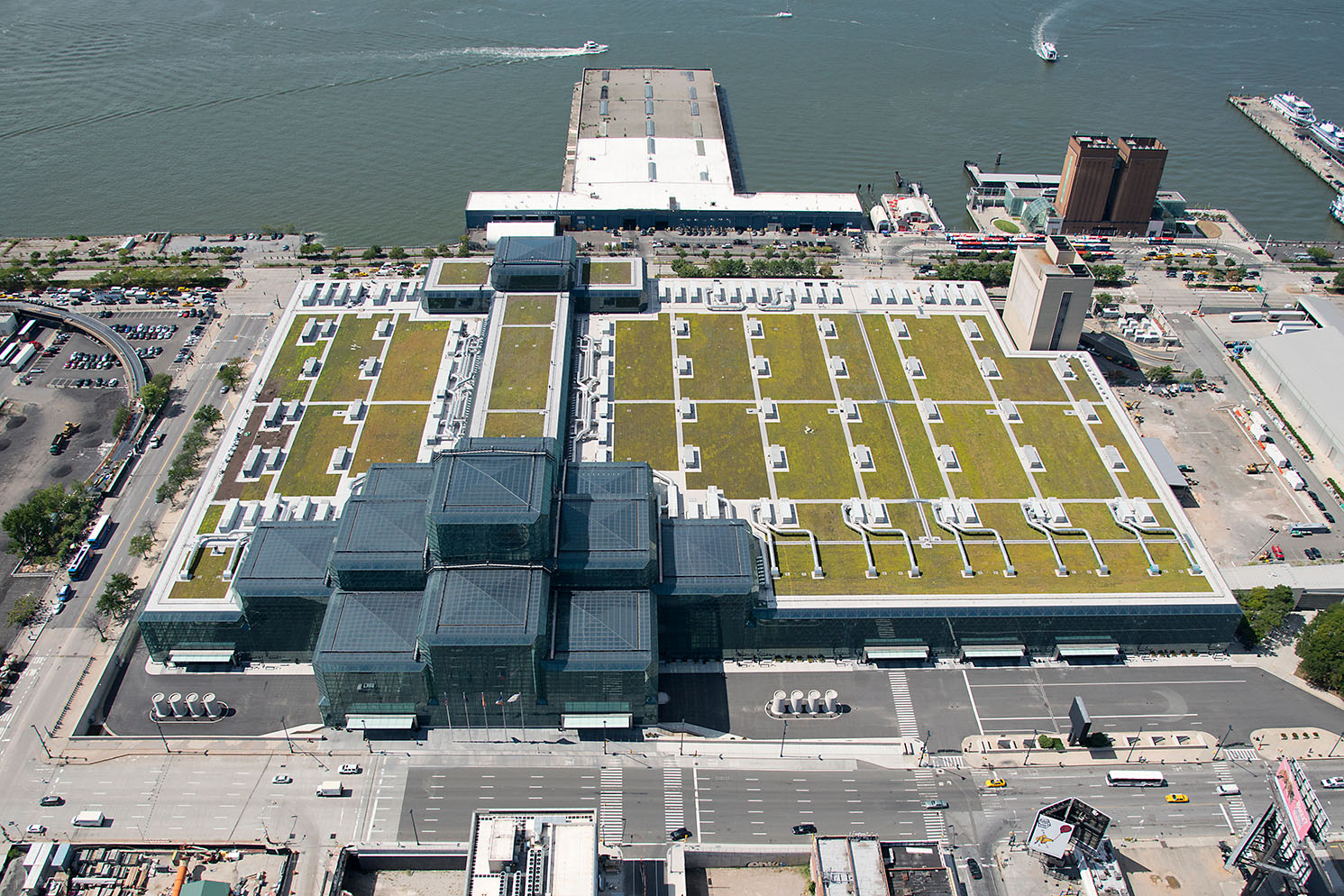

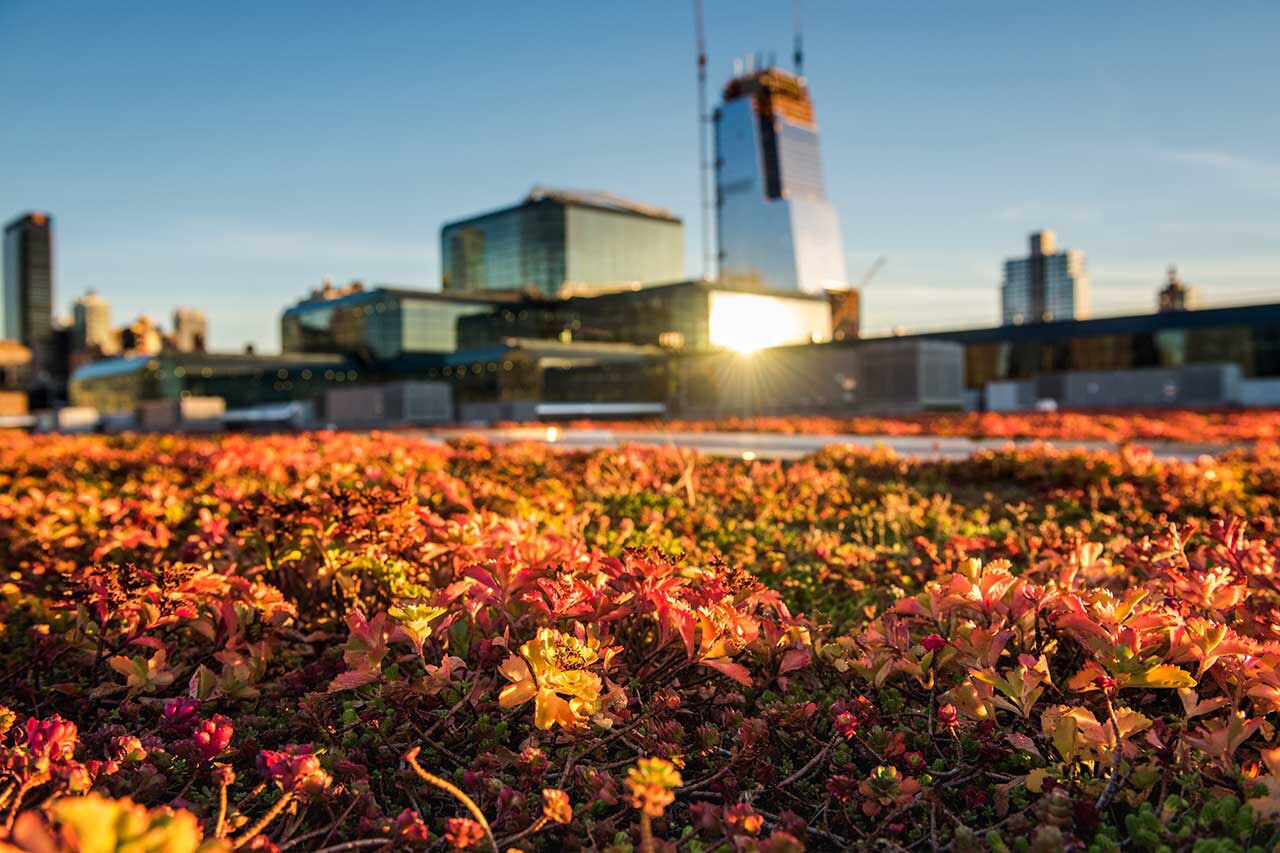

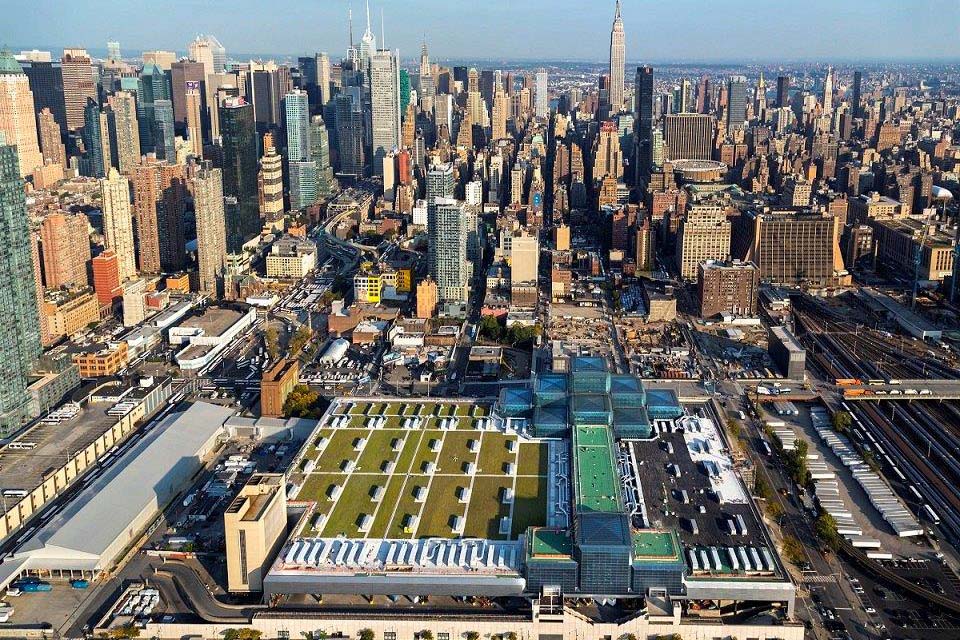

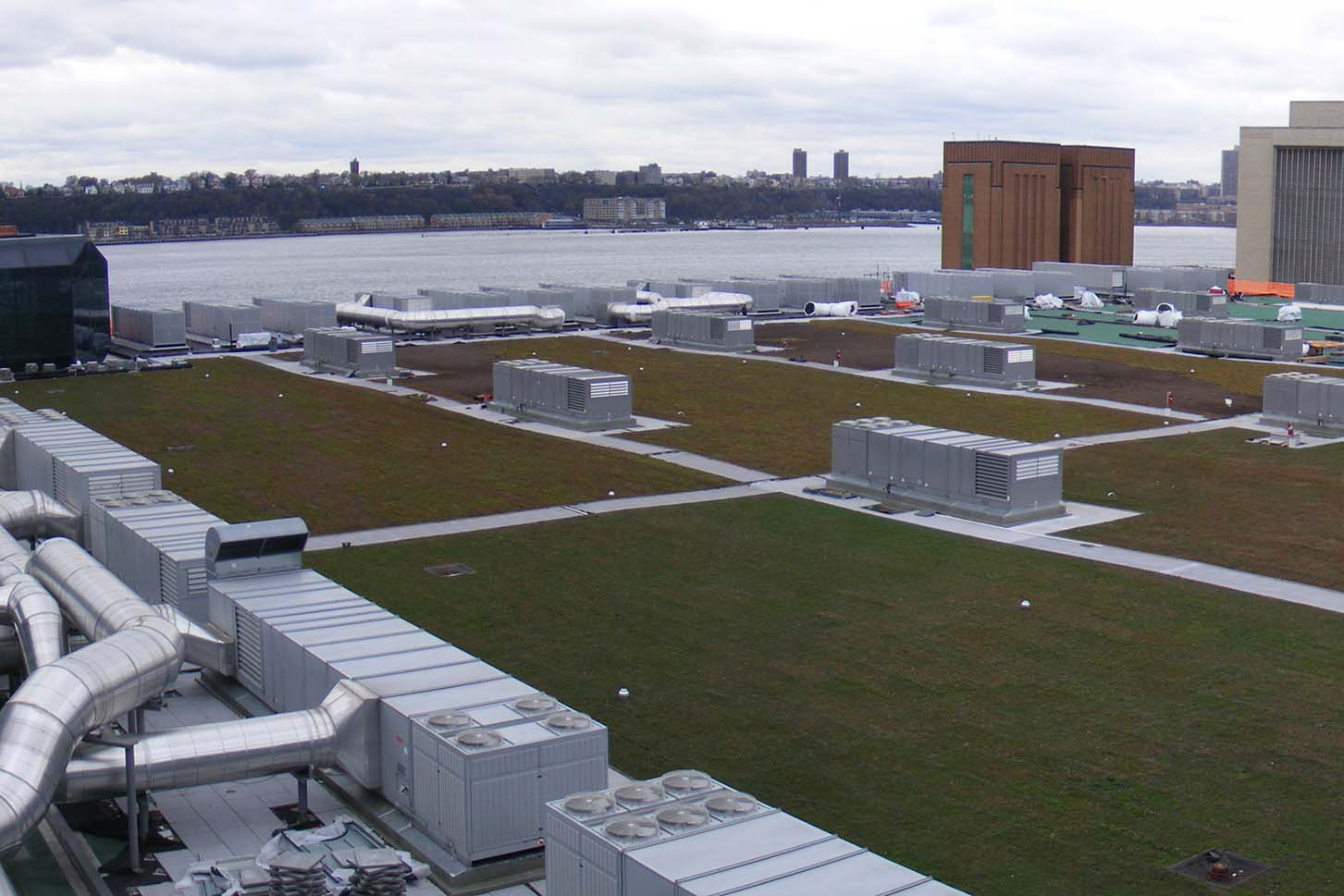

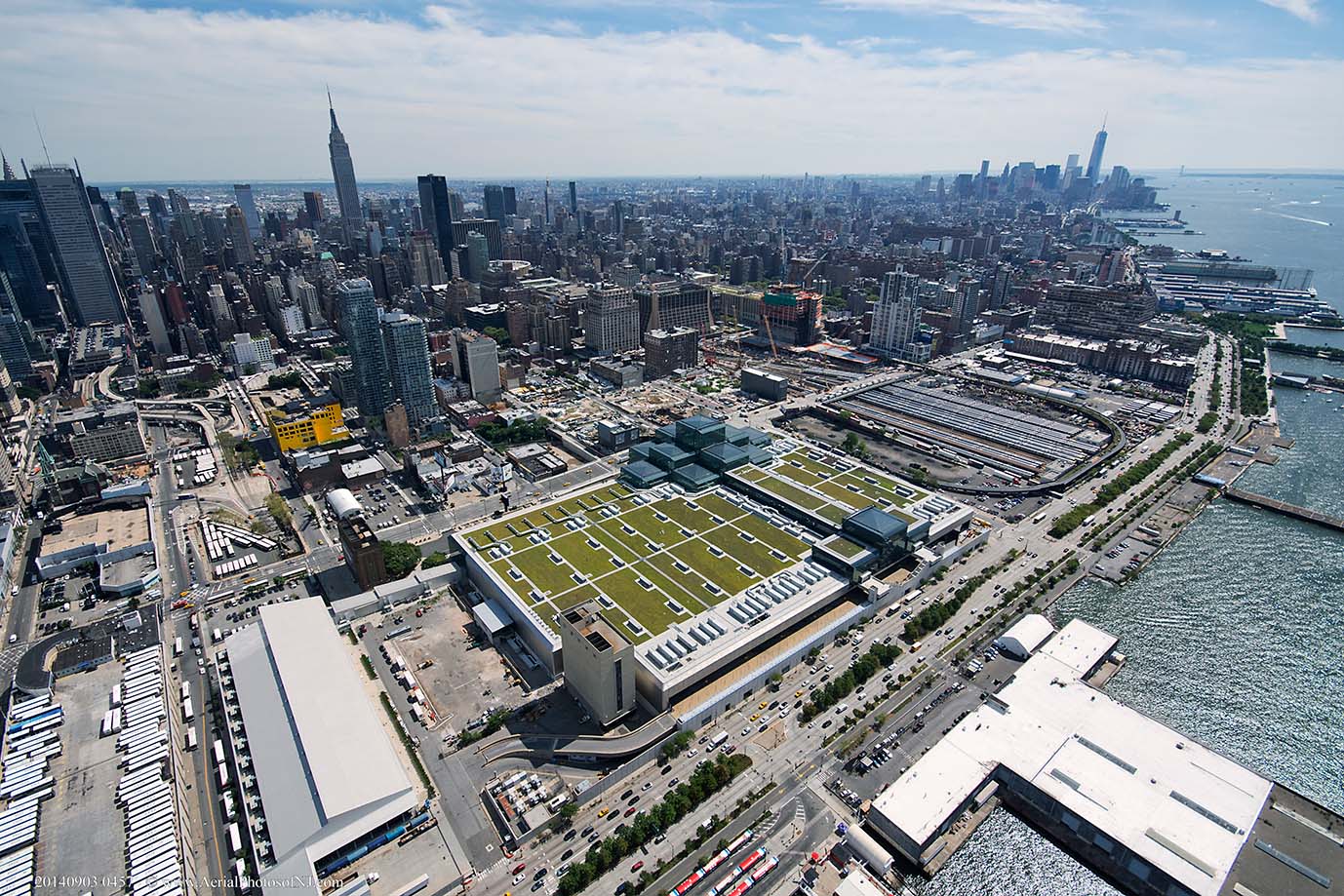

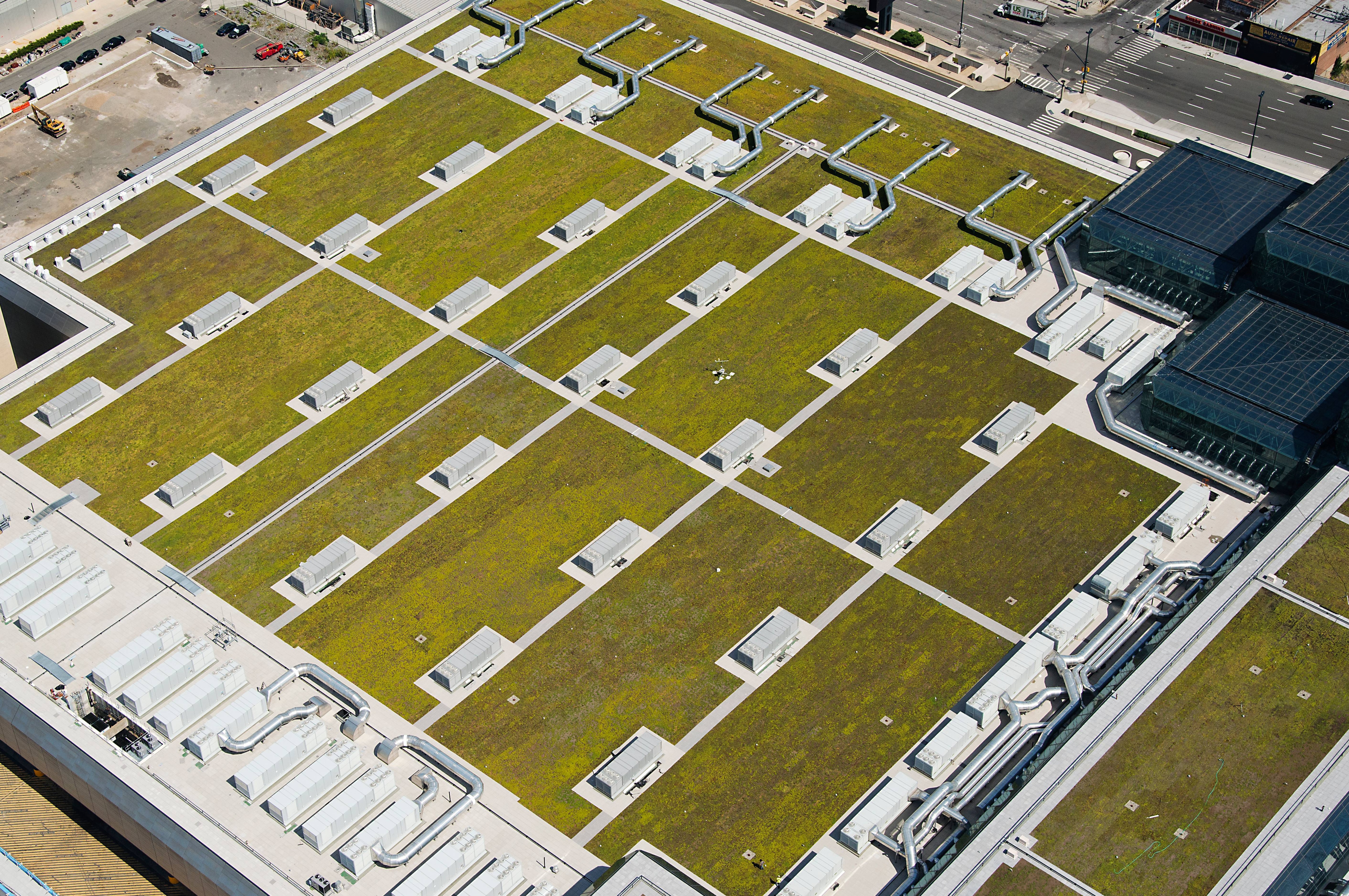

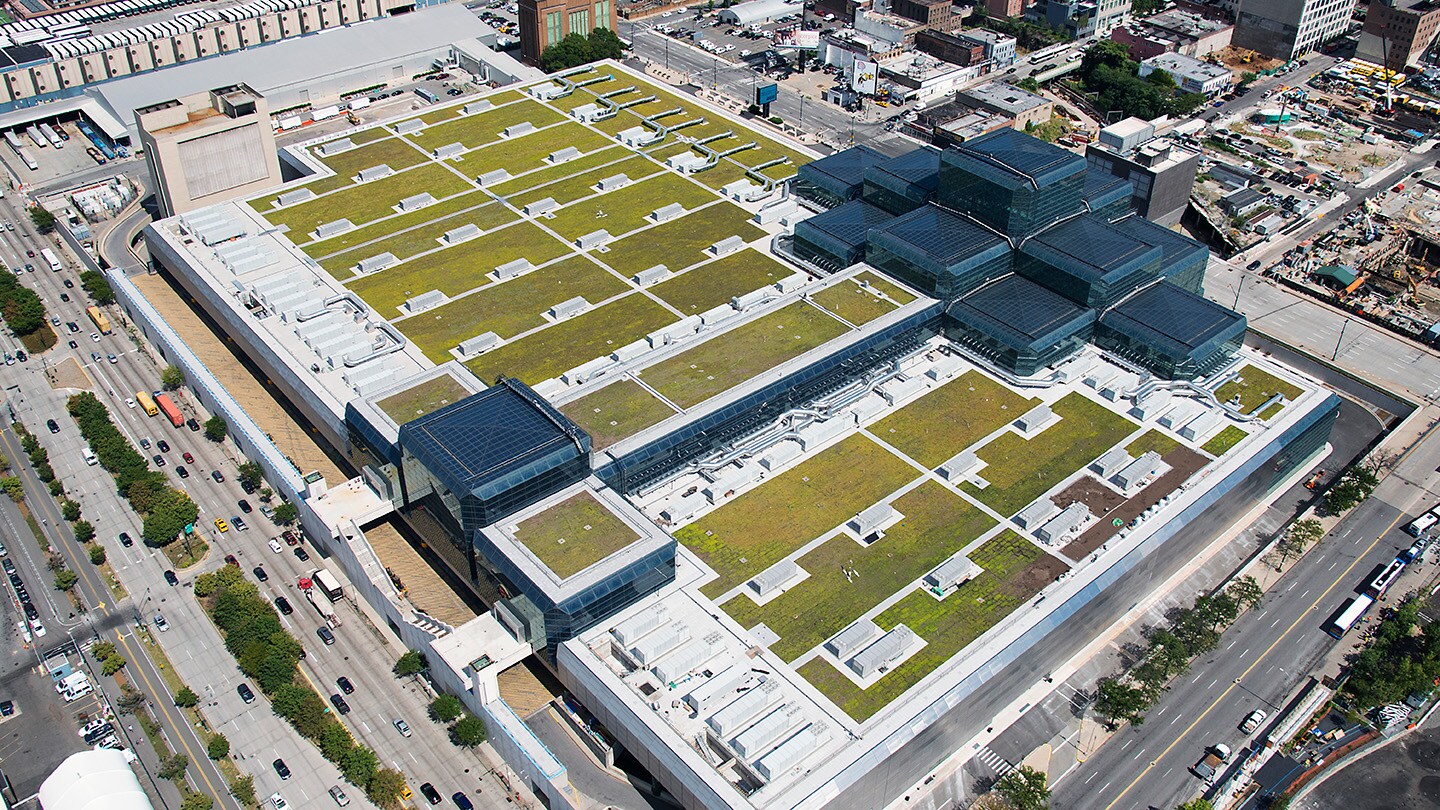

- Included extensive vegetated roof system, and pavers for high-traffic areas
See how well the new vegetated areas are growing – and providing a wildlife habitat – via the live Javits Center Green Roof Cam!
Image Gallery
Click on an image below to see a larger version

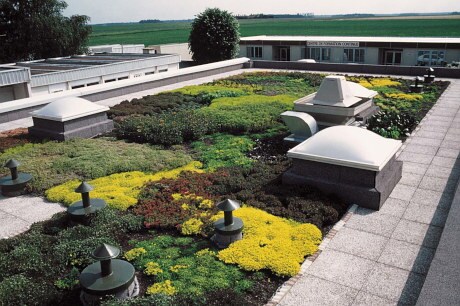

Teranap Plaza Deck Waterproofing & Green Roofing Systems
In the 1970s, environmental awareness began to grow, and so did the use of green roof systems as a way to manage environmental impact. Of course, both plaza deck and green roof applications create significant waterproofing challenges. That's why Siplast Research and Development took their pioneering SBS-modified bitumen technology and applied it to the design of a waterproofing membrane for plaza deck and green roof applications: Teranap. Learn more about our brand of Teranap Plaza Deck Waterproofing & Green Roofing Systems, our history, and our dedication to innovation.
